AVAILABLE RANGE

Model	Power		Stages	Tank Capacity	Pipe Size		m³ / h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6
Model	KW	HP	Stages	Tank Capacity	Suction	Delivery	I / min	0	20	40	60	80	100	120	140	160

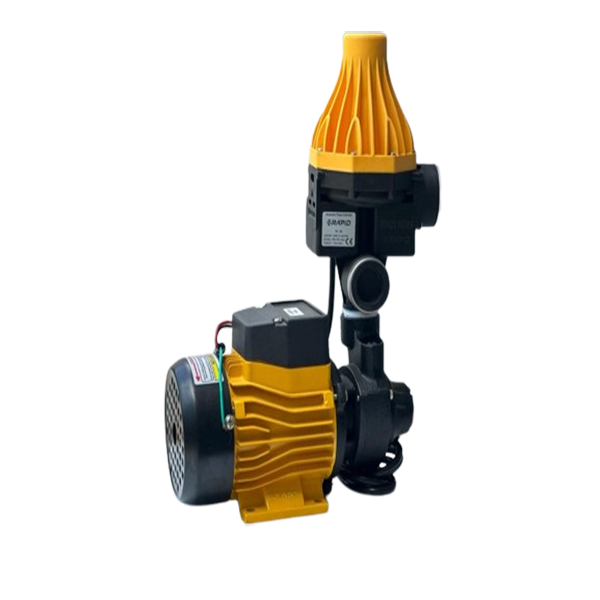

Nu-e 51	0.37	0.5	1	PC Kit	1″	1″	Head / m	31	18	6

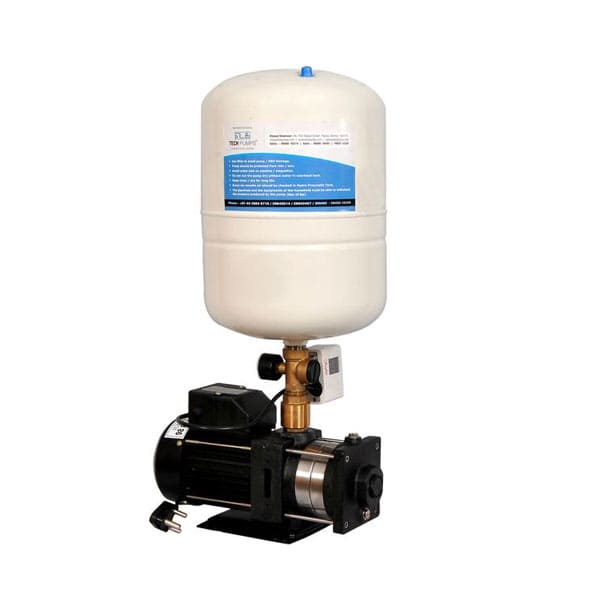

Nu-e 80	0.6	0.8	2	24	1″	1″	Head / m	30	25	21	17	6

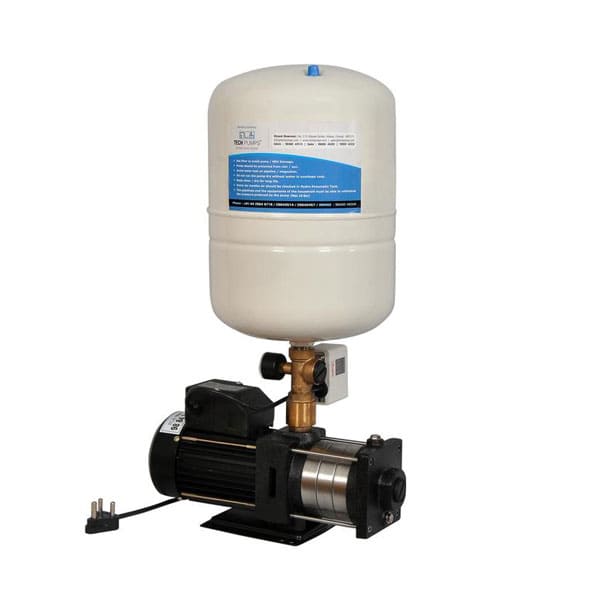

Nu-e 100	0.75	1	3	24	1″	1″	Head / m	40	35	30	26	16	6

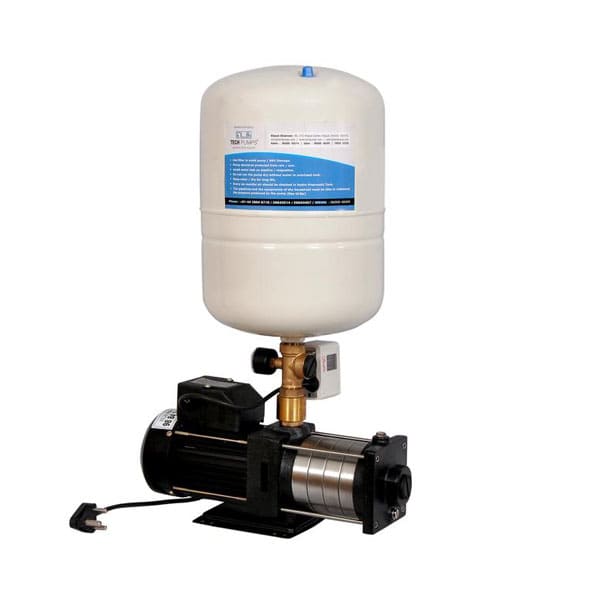

Nu-e 150	1.1	1.5	4	24	1″	1″	Head / m	50	41	37	33	29	24	18	6

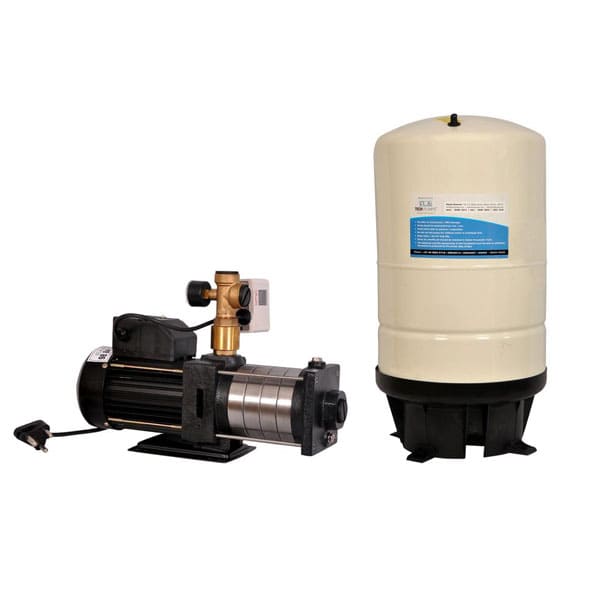

Nu-e 151	1.1	1.5	4	60	1″	1″	Head / m	50	41	37	33	29	24	18	6

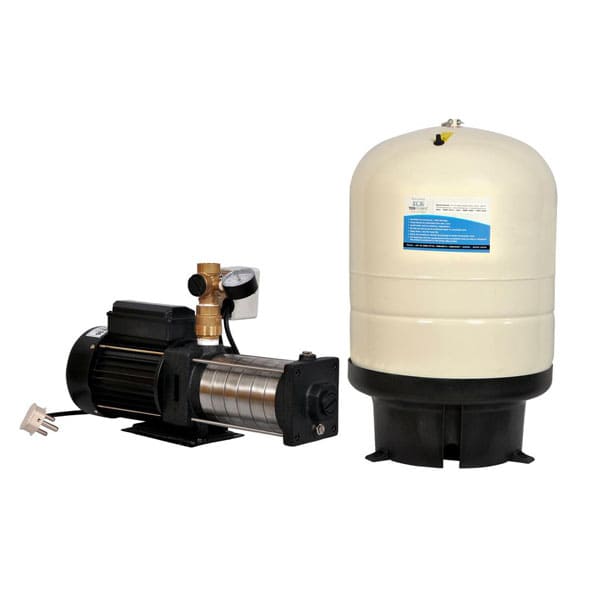

Nu-e 200	1.5	2	5	24	1″	1″	Head / m	60	52	47	43	37	30	24	14	6

PRICE LIST

S.No	Description	Model	Showers	Pipe Size	Tech No	Max Head Metre in LPH	Min Head Metre in LPH	Selling Price ( Incld GST )
S.No	Description	Model	Showers	Pipe Size	Tech No	Max Head Metre in LPH	Min Head Metre in LPH	Selling Price ( Incld GST )	1	0.5HP with PC Kit	Nu-e 51	2	1″X1″	Nu-e 50	28M@720LPH	15M@1800LPH	9500.00
2	0.8 HP with 24 Litres Tank	Nu-e 75	3	1″X1″	Nu-e 75	25M@1200LPH	6M@3600LPH	19500.00
3	1 HP with PC Kit	Nu-e 99	4	1″X1″	Nu-e 99	45M@840LPH	6M@3300LPH	19500.00
4	1 HP with 24 Litres Tank	Nu-e 100	4	1″X1″	Nu-e 100	35M@1200LPH	6M@6000LPH	21000.00
5	1.5 HP with 60 Litres Tank	Nu-e 150	5	1″X1″	Nu-e 150	42M@1200LPH	6M@8400LPH	33500.00
6	2 HP with 100 Litres Tank	Nu-e 200	7	1″X1″	Nu-e 200	52M@1200LPH	6M@9600LPH	55000.00

Our Products

PUMPED LIQUID

Clean, Thin, Non-aggressive, Non – Explosive, Clear, (old, Fresh Water without abrasives, solid particles or fibers.
